MapTools 1:24,000 Scale Map Ruler

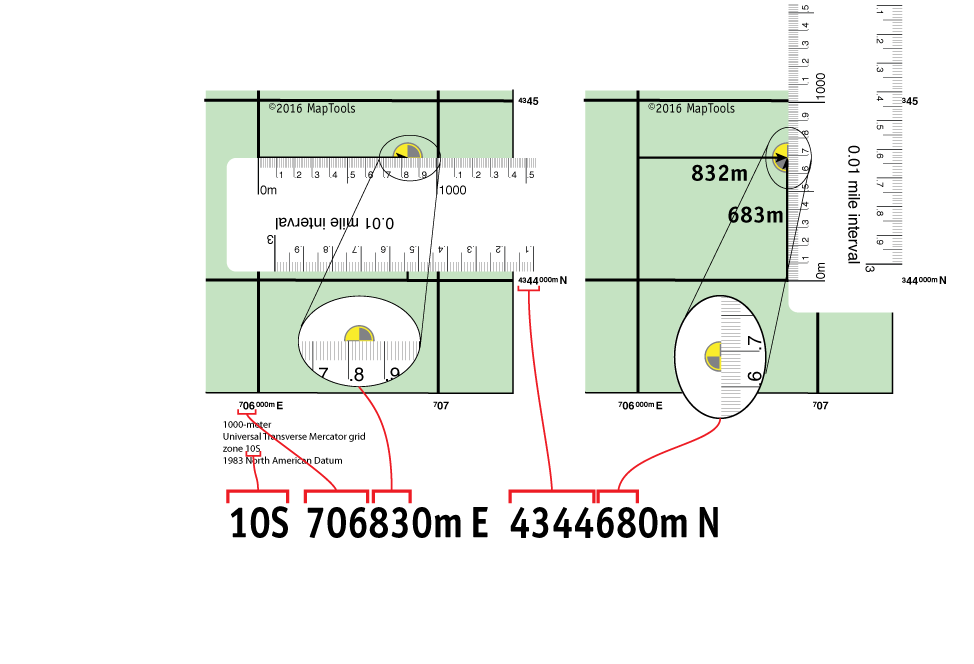

This ruler can be used to measure or plot latitude/longitude coordinates, UTM/MGRS/USNG coordinates, and to measure distances in either meters or miles.

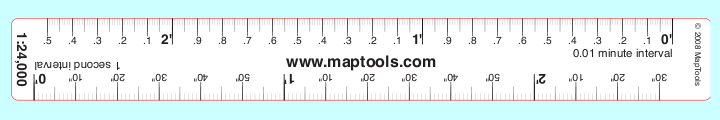

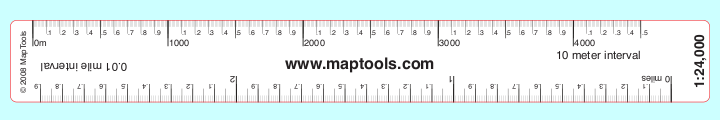

On the front side, the ruler has minutes and seconds on one edge and decimal minutes on the other edge, allowing you to use either notation. On the back side, the ruler has distance in meters on one edge, and distance in either miles on the other edge.

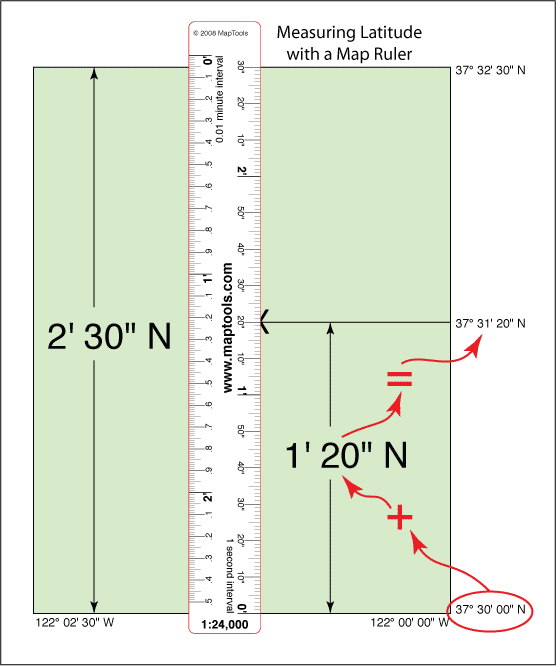

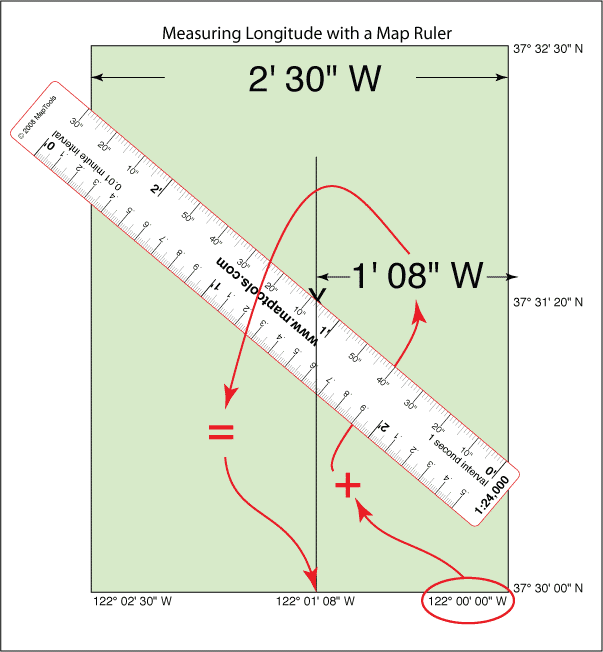

Latitude is measured directly with the ruler. But, since a degree of longitude covers a shorter distance as you move towards the poles, the ruler is used on a diagonal to measure longitude.

The ruler includes instructions for use.

Specifications:

• Scale: 1:24,000

• Maps: USGS 7.5 minute topographic maps

Front Side:

• Span: 2.5 min

• Ruler Increments in Minutes: 0.01 min

• Ruler Increments in Seconds: 1 sec

Back Side:

• Ruler Increments in Meters: 10 m

• Ruler Increments in Miles: 0.01 mi

• Height: 8.500 in. (216mm)

• Width: 1.000 in. (25mm)

• Thickness: 0.020 in. (1mm)

• Weight: 0.130 oz. (4g)

Made in the United States.

All orders that include products from MapTools, receive a printed copy of these free reference materials:

• Locating Coordinate Grid Information on USGS Maps

• Map Math Instruction Sheet

• North Reference Sheet

• USGS Topographic Map Symbols

• UTM Tool Instruction Sheet
